Estabrook dam: interesting past, uncertain future

Photo by Rachel Swanson

The fate of the 77-year-old Milwaukee River dam at Estabrook Park will be decided in the coming months. Photo by Rachel Swanson

After years of debate, Milwaukee County is moving closer to a decision concerning its 1937 dam across the Milwaukee River at Estabrook Park and, no matter the outcome, at least some river users are bound to be disappointed. Those who wish to see the Milwaukee River flowing unimpeded argue forcefully for its removal, while others are just as vehement in demanding a new or rebuilt dam.

In 2009, the state Department of Natural Resources, after a long, worried look at the present dam’s condition, ordered Milwaukee County to either fix it by the end of 2014 or remove the dam. The 2009 order also required the dam gates be left permanently open to alleviate stress on the structure.

The wear and tear of 77 years is clearly visible on the concrete dam gates. Photo by Carl Swanson

The wear and tear of 77 years shows on the concrete dam piers. Photo by Carl Swanson

The DNR order ignited debate over the dam’s future. Environmental groups, including the 650-member Milwaukee Riverkeeper, want the elderly dam removed or, at a minimum, repaired with the addition of provisions for fish passage. Riverbank property owners upstream want the dam repaired or replaced to maintain a substantial impoundment west of the dam. An alternative, removing the dam and installing a four-foot-high rock “ramp” to provide upstream impoundment while looking more like a natural river, has also been kicked around.

The final decision is largely in the hands of Milwaukee County, which originally signaled it favors repairing the existing dam. However, in early September of this year, the Milwaukee County parks system took the contrary position of recommending demolition.

Regardless of your feelings about the dam, the Depression-era structure has an interesting history.

Prior to the dam’s construction, the Milwaukee River cut an S-shaped course through what is now Lincoln Park and an outcropping of limestone created a wide natural pool in the river ideal for boating and swimming.

However, the outcropping was also blamed for occasional flooding north of Silver Spring Drive so, in 1933, the rock shelf was removed by blasting and the river straightened. The water level dropped after the removal of the outcropping. Anxious to preserve the recreational uses of the river, Milwaukee County received a permit from the DNR in 1937 to operate a dam to maintain a fixed impoundment pool.

The dam was a federally funded project by the Civil Works Administration and the Civilian Conservation Corps (CCC), which maintained a large worker camp in Estabrook park for several years.

The CCC was established in 1933 to provide employment for young men age 17 through 28. The men had to be single, unemployed, and from needy families. The men enrolled for six months at a time and could stay in the program a maximum of 18 months. During their enrollment, the men lived in camps (there were six camps in Milwaukee County), wore government-issued clothing, were given three meals a day, and followed strict disciplinary guidelines.

In Estabrook Park, CCC workers removed 100,000 cubic feet of limestone from the riverbed, crushed it, and used some of it to build the dam and the rest of construct roads. For this they were paid $5 per month and an additional $25 was sent to their families.

The dam's major structures are labeled in this photo. The dam accumulates floating debris field upstream and the riverbed has been found to contain hazardous chemicals.

The dam’s major structures are labeled in this photo, including the serpentine spillway designed to resemble a natural rock shelf. The dam accumulates floating debris and periodic clean-outs are expensive and difficult, adding to the dam’s ongoing maintenance costs.

The dam, which cost $65,000 to build, has three major components divided by a small island in the middle of the river. North of the island is a spillway with 10 gates, which can be positioned to control water flow. Upstream to the west a row of triangular ice breakers protect the gates from ice floes or tree damage. South of the island, and rarely seen by park visitors, the dam takes the form of a 582-foot-long serpentine wall only a few feet higher than normal water level. Consequently, the Estabrook dam has a limited ability to control downstream flooding.

The county was thinking about aesthetics in the 1930s, it faced the serpentine wall with limestone blocks to mimic a natural rock shelf.

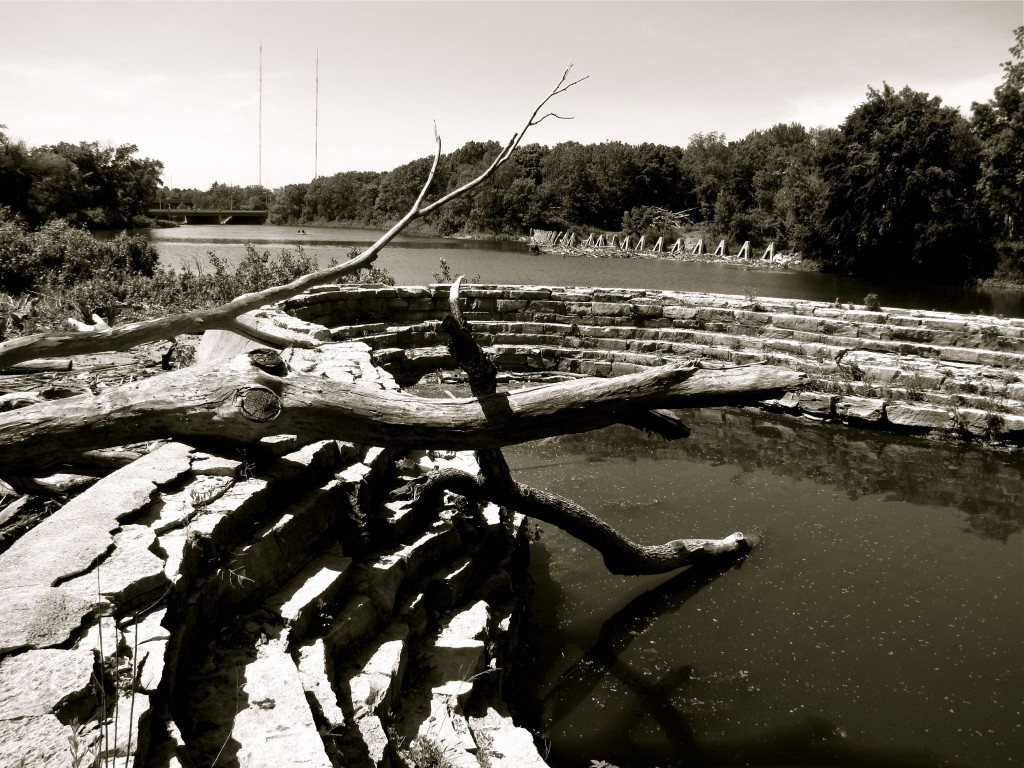

The serpentine spillway is made of concrete faced with limestone blocks and is intended to look like a natural rock shelf. Photo by Carl Swanson

The serpentine spillway is made of concrete faced with limestone blocks. Just a few feet higher than natural river level, the dam provides little downstream protection during major floods. Photo by Carl Swanson

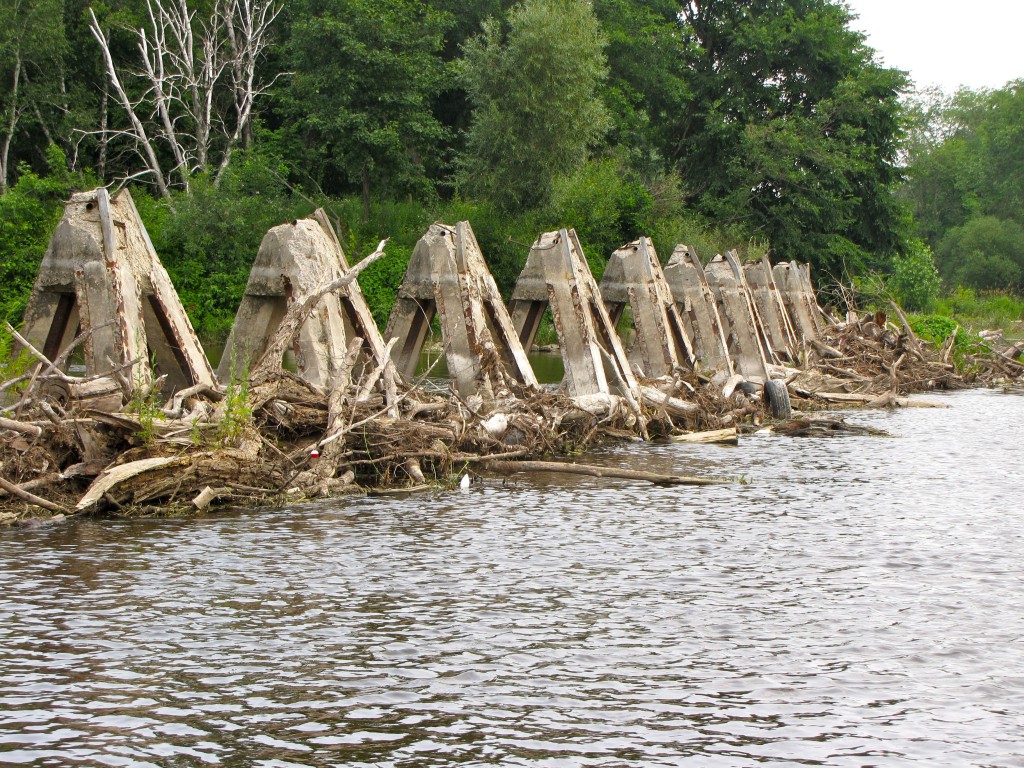

Concrete guards protect the gated portion of the dam from floating logs and ice floes. Photo by Carl Swanson

Concrete guards protect the gated portion of the dam from floating logs and ice floes. Photo by Carl Swanson

Until recently, the central island, called Dam Island, was considered federal property under the jurisdiction of the U.S. Bureau of Land Management. A BLM review in late 2014 determined Dam Island is part of Estabrook Park.

The dam is now in sad shape. Engineers report significant deterioration, as might be expected from a 77-year-old structure, but say the basic structure is fundamentally sound. In fact the original builders notched the limestone riverbed so that the dam’s base nestles in bedrock like a tooth in its socket. The engineers concluded the dam is potentially repairable and, in 2010, the county voted to do just that.

To keep those plans moving forward, the county is now in the process of compiling an environmental assessment. The assessment requires that other alternatives be considered. The parks department favores demolition, saying it is the cheapest of all options. Will the country board also change course?

We will find out soon what the future holds for the Estabrook dam.

Updated November 2014 to clarify the Federal government’s relinquishing claim to Dam Island. A review of survey maps determined the island is part of Estabrook Park.

estabrook_dam_spillway_wall

To visit the dam, enter Estabrook Parkway from West Hampton Avenue and take the first right turn on a narrow road heading down to the river. The road ends in a small parking lot and the dam is just a few steps upstream. If the dam walkway gates are open you can cross over to the island and see the serpentine spillway. Use caution on the crumbling dam stairs. Photo by Carl Swanson
